Mammo 1012C

10×12-inch mammographic Flat Panel Detector

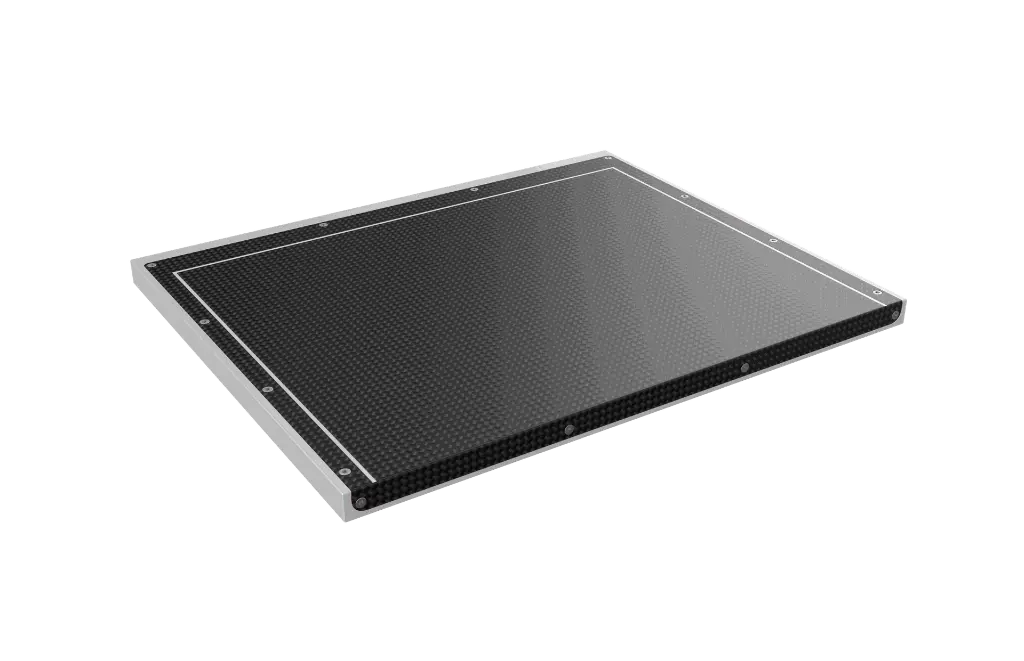

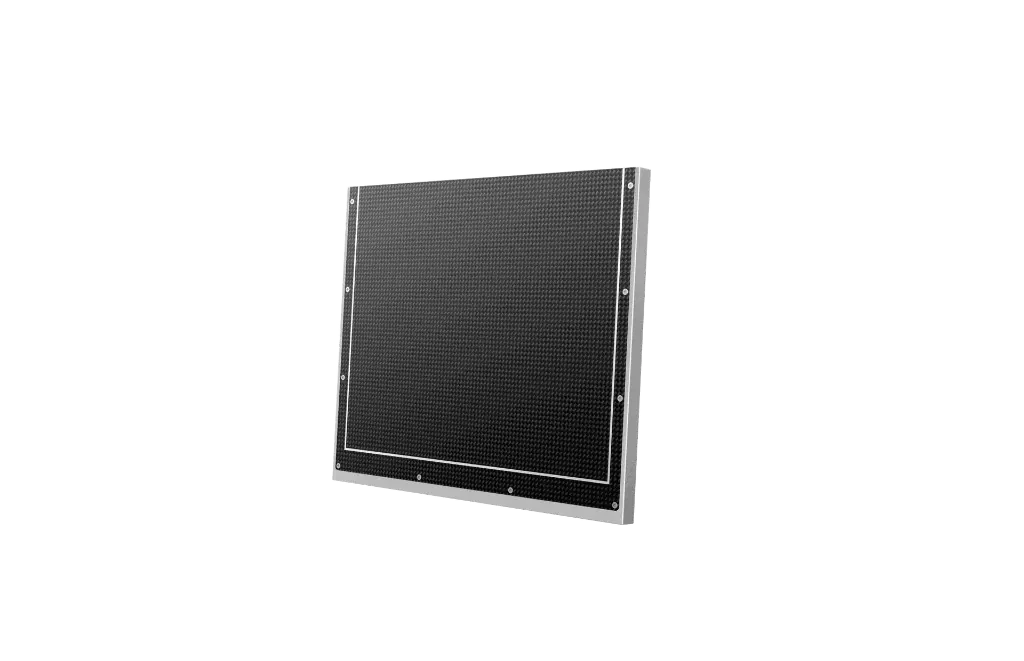

Mammo 1012C is a cassette-sized flat panel detector for digital mammography. It has a 10×12-inch active area, an 85 μm pixel pitch a-Si sensor, and direct deposition CsI. The detector provides a reliable, low power automatic exposure detection (AED), and is also compatible withautomatic exposure control (AEC) of an existing system. With its exceptional image quality the Mammo 1012C is an excellent choice for both new and retrofit FFDM systems.

Features

• Cassette size conform with ISO 4090
• 85 μm pixel pitch with 16-bit ADC
• Switchable gain settings for variable sensitivity
• Compact design for easy integration
